JT/T808 Terminal Simulator
$49.99,free evaluation

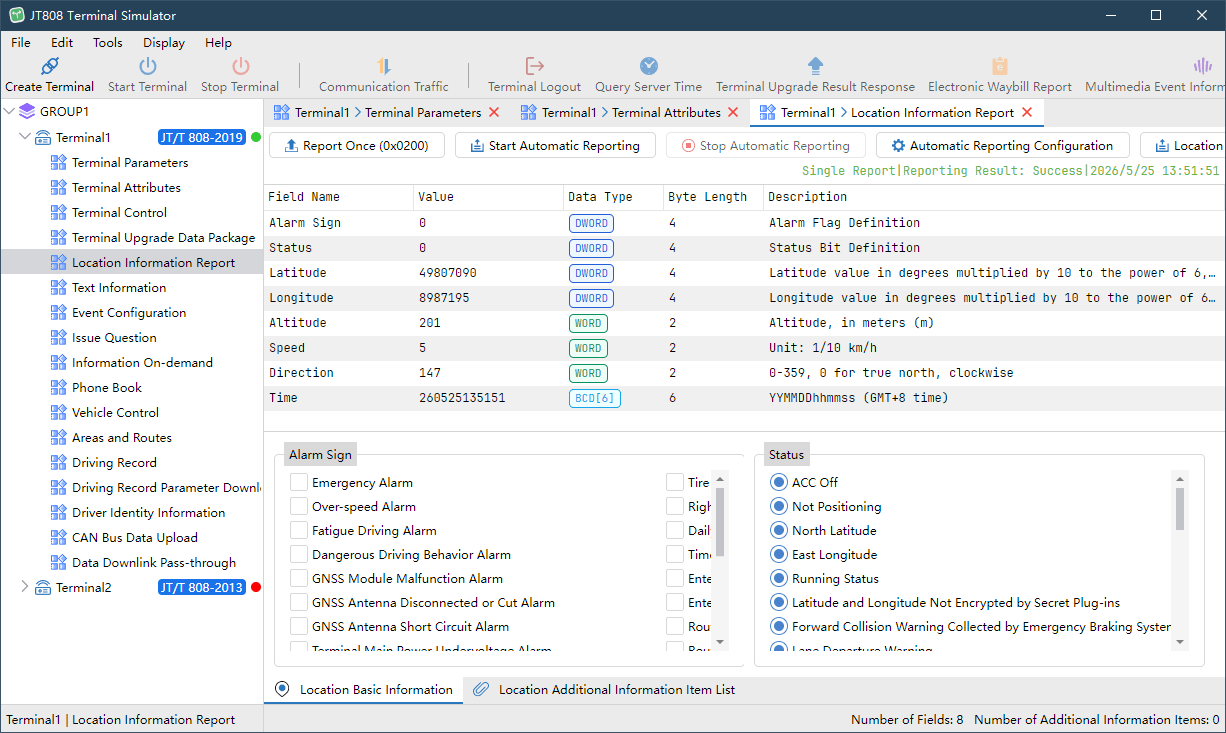

Location information reporting
The JT808 Terminal Simulator supports all JT/T808 protocol versions (2011, 2013, 2019) and full message type support. It automatically reports location information using the simulator.

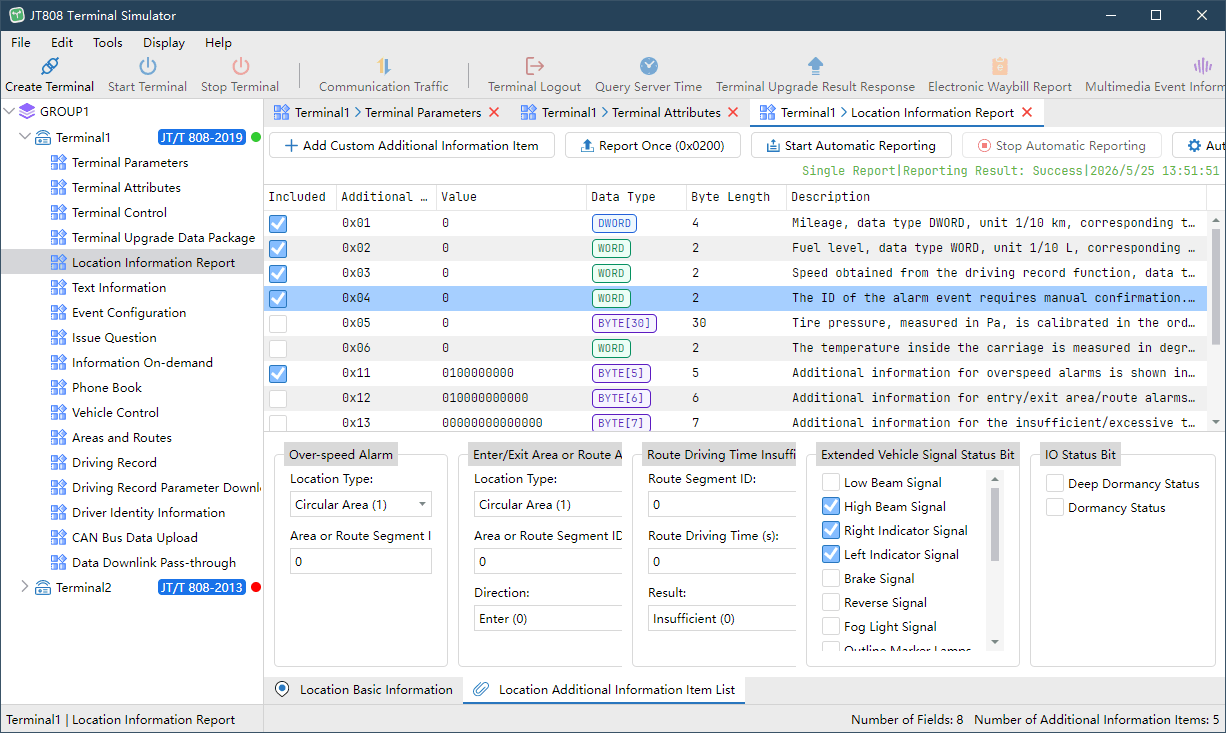

Location information reporting
Edit all fields with one click, eliminating the hassle of inputting byte arrays and enabling quick and efficient testing; and provide comments for all protocol fields.

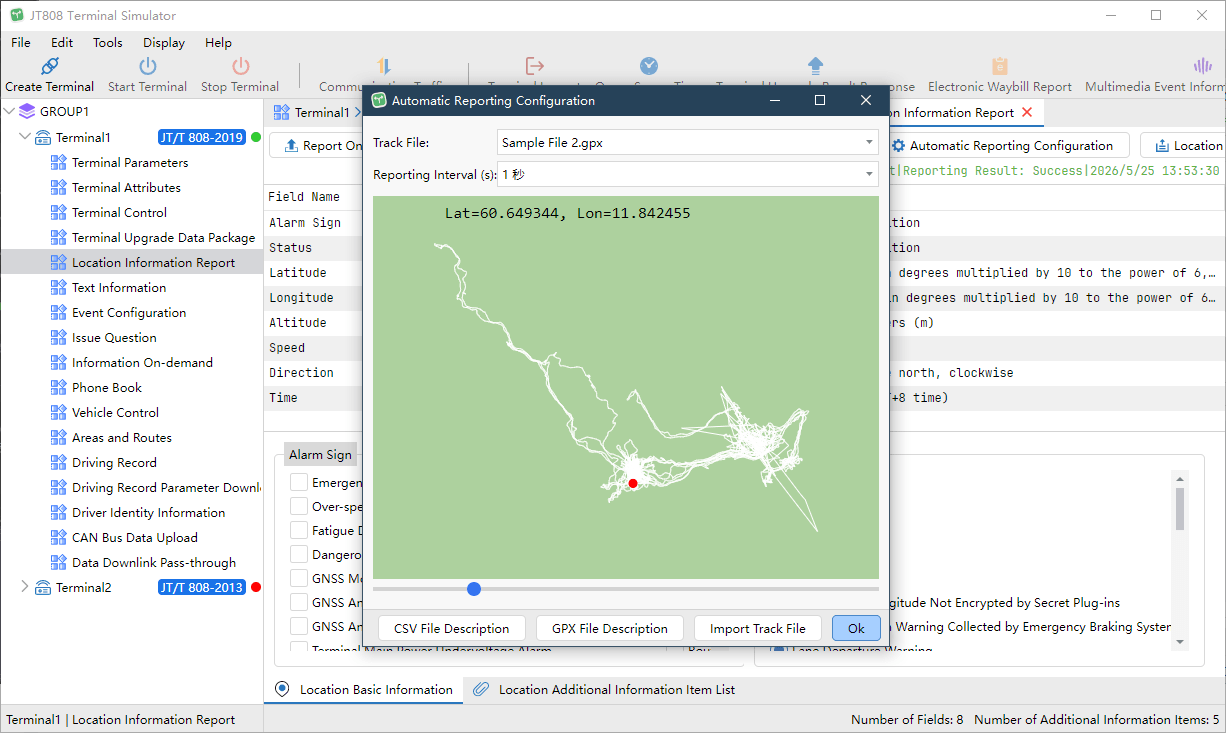

Report location using real GPS track files.
The JT808 Terminal Simulator allows you to import GPX type trajectory files and automatically report data using real data.

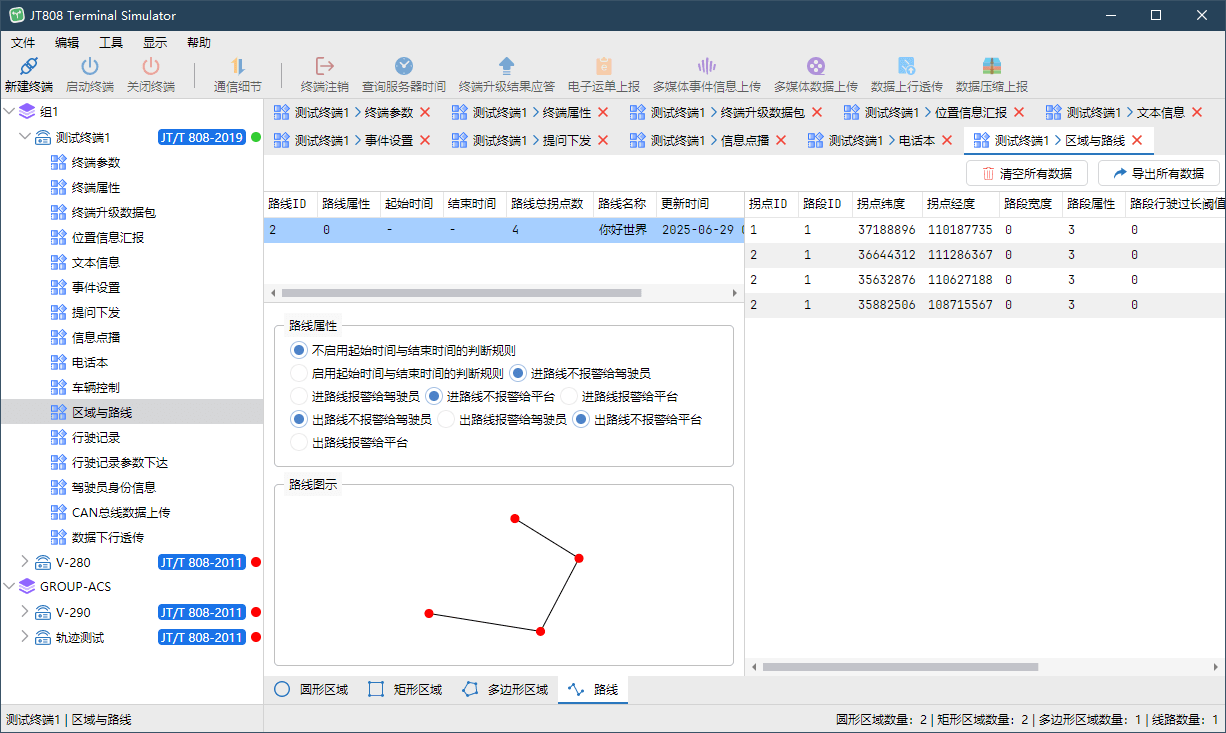

Areas and routes
The platform displays the regions and routes clearly, automatically parses the region attributes, and draws a region map based on latitude and longitude, making it convenient for your quick judgment and debugging work.

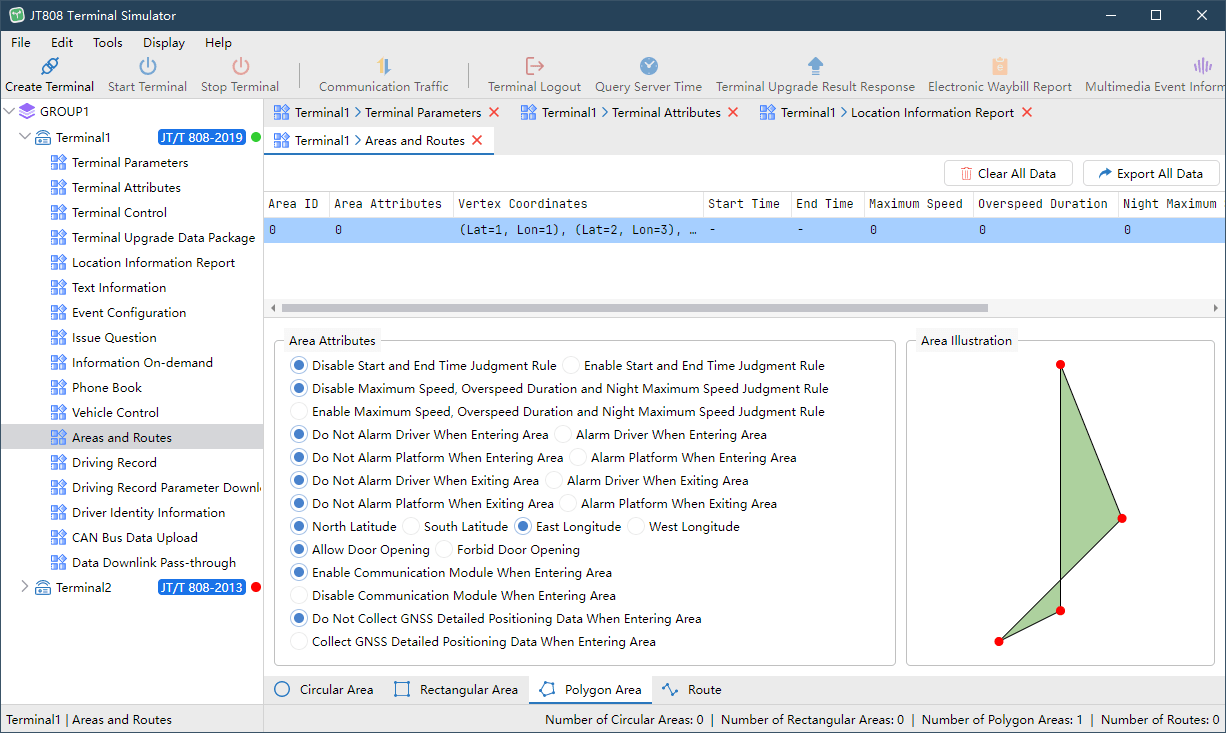

Areas and routes
The platform displays the regions and routes clearly, automatically parses the region attributes, and draws a region map based on latitude and longitude, making it convenient for your quick judgment and debugging work.

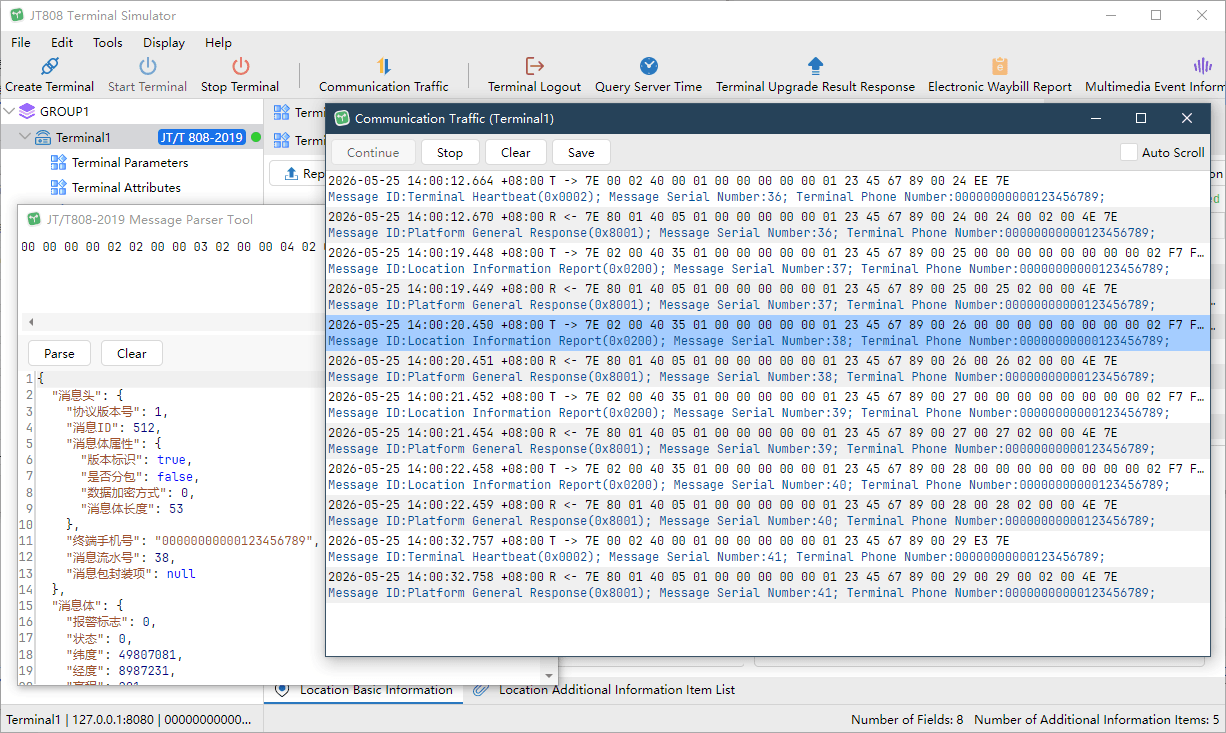

Messages and parsing
Use the JT808 Terminal Simulator to view all communication processes and it supports parsing various types of messages.

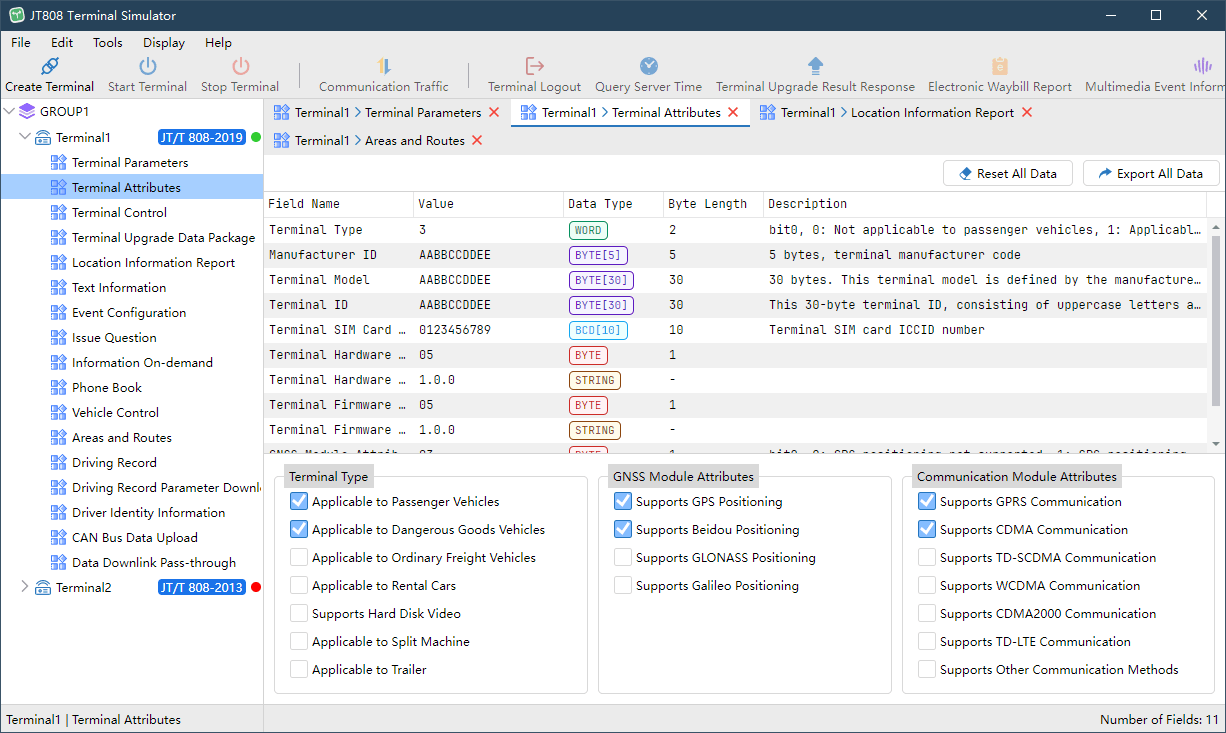

Full protocol support
The JT808 Terminal Simulator supports all message types from 2011, 2013, and 2019, including: terminal parameters, terminal attributes, terminal upgrade packages, location information, events, questions, information services, multimedia, etc.
Full protocol support
The JT808 Terminal Simulator supports all message types from 2011, 2013, and 2019, including: terminal parameters, terminal attributes, terminal upgrade packages, location information, events, questions, information services, multimedia, etc.

Main Functions

Full protocol support

The JT808 Terminal Simulator supports all JT/T808 protocol versions (2011, 2013, 2019) and full message type support.

Native Apps

The JT808 Terminal Simulator uses native technology, resulting in fast response and low memory usage, allowing it to run smoothly even on older machines.

Simultaneously simulating multiple terminals

The JT808 Terminal Simulator can simulate multiple terminals simultaneously and supports terminal grouping. Its comprehensive and user-friendly interface design provides a smooth operating experience.

TCP/UDP

The JT808 Terminal Simulator supports TCP or UDP connection methods and message packet splitting.

Monitoring link data

Use the JT808 Terminal Simulator to monitor every frame of data on the communication link and export it to a file for analysis at any time.

Message parsing tools

Use the message parsing tool provided by JT808 Terminal Simulator to immediately understand the meaning of each byte.

Import GPS Track

The JT808 Terminal Simulator allows you to import GPX type trajectory files and automatically report data using real data.

Multimedia support

It provides complete multimedia support, including: multimedia event information upload, multimedia data upload, instant camera capture, audio recording, etc.

  • Supports all JT/T808 versions: 2011, 2013, 2019
  • Supports terminal grouping, allowing simultaneous simulation of multiple terminals
  • Supports viewing communication frames and parsing messages
  • Management via multiple tabs, enabling quick switching between terminals
  • Provides comprehensive annotations for message fields
  • Visualizes regions and routes
  • Supports Windows, macOS, and Linux
  • A refined and user-friendly interface design provides a smooth operating experience
  • Supports all message types:
    • 0x0001: Terminal General Response
    • 0x8001: Platform General Response
    • 0x0002: Terminal Heartbeat
    • 0x8003: Server Retransmission Packet Request
    • 0x0005: Terminal Retransmission Packet Request
    • 0x0100: Terminal Registration
    • 0x8100: Terminal Registration Response
    • 0x0003: Terminal Deregistration
    • 0x0004: Query Server Time
    • 0x0102: Terminal Authentication
    • 0x8103: Set Terminal Parameters
    • 0x8104: Query Terminal Parameters
    • 0x0104: Query Terminal Parameter Response
    • 0x8105: Terminal Control
    • 0x8106: Query Specified Terminal Parameters
    • 0x8107: Query Terminal Attributes
    • 0x0107: Query Terminal Attribute Response
    • 0x8108: Issue Terminal Upgrade Package
    • 0x0108: Terminal Upgrade Result Notification
    • 0x0200: Location Information Reporting
    • 0x8201: Location Information Query
    • 0x0201: Location Information Query Response
    • 0x8202: Temporary Location Tracking Control
    • 0x8301: Event Settings
    • 0x0301: Event Reporting
    • 0x8302: Question Issuance
    • 0x0302: Question Response
    • 0x8303: Information On-Demand Menu Settings
    • 0x0303: Information on Demand/Cancel
    • 0x8304: Information Service
    • 0x8004: Query Server Time Response
    • 0x8400: Phone Callback
    • 0x8401: Set Phonebook
    • 0x8500: Vehicle Control
    • 0x0500: Vehicle Control Response
    • 0x8600: Set Circular Area
    • 0x8601: Delete Circular Area
    • 0x8602: Set Rectangular Area
    • 0x8603: Delete Rectangular Area
    • 0x8604: Set Polygonal Area
    • 0x8605: Delete Polygonal Area
    • 0x8606: Set Route
    • 0x8607: Delete Route
    • 0x8700: Dashcam Data Acquisition Command
    • 0x0700: Dashcam Data Upload
    • 0x8701: Dashcam Parameter Download Command
    • 0x8203: Manual Confirmation of Alarm Message
    • 0x8204: Server initiates link detection request to terminal
    • 0x8300: Text message delivery
    • 0x0702: Driver identity information collection and reporting
    • 0x8702: Driver identity information reporting request
    • 0x0704: Batch upload of location data
    • 0x0705: CAN bus data upload
    • 0x0800: Multimedia event information upload
    • 0x0801: Multimedia data upload
    • 0x8800: Multimedia data upload response
    • 0x8801: Camera immediate capture command
    • 0x0805: Camera immediate capture command response
    • 0x8802: Stored multimedia data retrieval
    • 0x0802: Stored multimedia data retrieval response
    • 0x8608: Query area or route data
    • 0x0608: Query area or route data response
    • 0x0701: Electronic waybill reporting
    • 0x8803: Storage multimedia data upload
    • 0x8804: Recording start command
    • 0x8805: Single storage multimedia data retrieval and upload command
    • 0x8900: Downlink data pass-through
    • 0x0900: Uplink data pass-through
    • 0x0901: Data compression and reporting
    • 0x8A00: Platform RSA public key
    • 0x0A00: Terminal RSA public key
